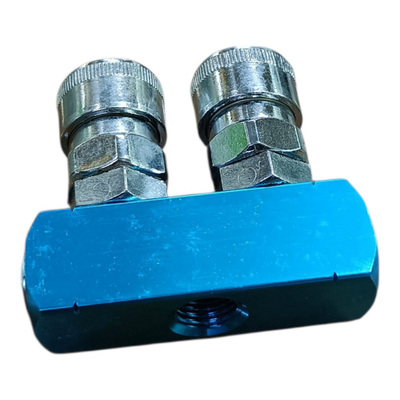

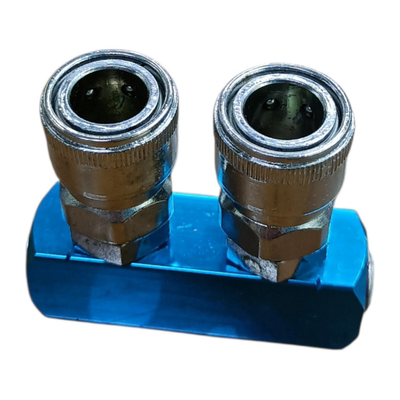

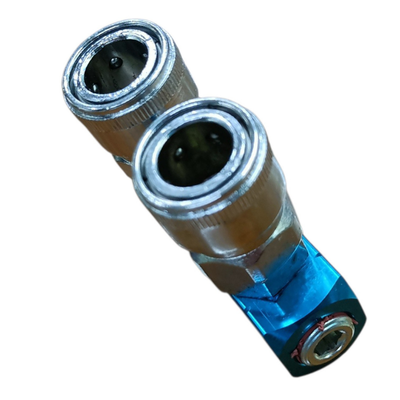

THB 2-Way Quick Coupler
Straight Type 1/4NPT
Model: SML
SPECIFICATION
Working Pressure : 218 PSI (15 Bar / 1.5mPa)
Maximum Pressure : 290 PSI (20 Bar / 2mPa)
Temperature : (-20) – (+80) (68-176)Port Size : 1/4″
FEATURES
- Three or two couplers can apply for three or two working stations.
- The swivel manifold can be 360 ° rotated which would more convenient for users.
- The couplers can be replaced in Nitto type, American type or European type for various market demands.
APPLICATION : Pneumatic tools , Air piping , Air pressure equivalent
